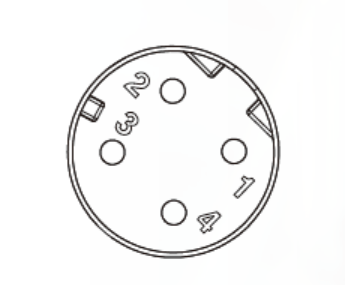

View from termination side |
|
|
Number of contacts |
4 |
|
AWG |
22 |
|
Rated current |
4A |
|
Rated voltage |
250V |
|
Rated impulse voltage |
2.5kV |
|
Temperature Range (working and storage) |
-40°C~105°C |
|
Insulation resistance |
>100MΩ |
|
Contact resistance |
≦10mΩ |
|
Mating cycles |
100 |
|
Locking type |
Screw Locking |
|
Degree of protection acc. to IEC 60529 |
IP67 |
|
Tightening torque |
5~8 kgf.cm |
|
Halogen free |
Optional |
|
Flame retardant |
UL94V-0 |
|
UV-resistant |
Yes |
|
Material (insert) |
Thermoplastic |
|
Material (contacts) |
Copper Alloy |
|
Surface (contacts) |
Gold plated |
|
RoHS |
Compliant |
