M12 S Code
|
Panel Side |
|
|

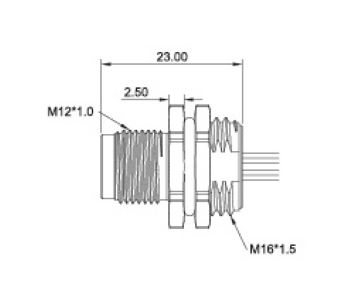

Panel Mount Rear Fastened |
|
|
Male |
|
|
|
|
|
M12S-MN-03P-MMSS-SR-70000X |
M12S-MN-04P-MMSS-SR-70000X |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
|
|
Cable Side |
||
|

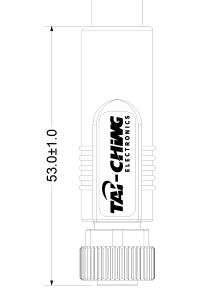

Straight Female |

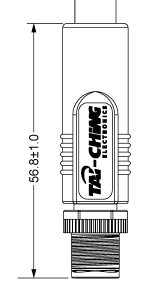

Straight Male |

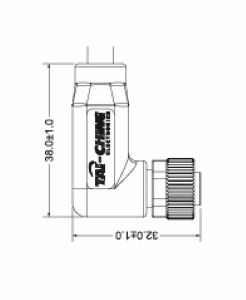

Angled Female |
|
|
|
|
|
M12S-MN-XXC-FFMS-SS-7QXXXX |
M12S-MN-XXC-MMMS-SS-7QXXXX |
M12S-MN-XXC-FFMS-SR-7QXXXX |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
||
|
Recommended Panel Cut Out |
|
|
M16 |
PG9 |
|
|
|
|

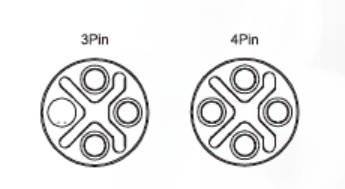

View from termination side |
|
|
Number of contacts |
3-4 |
|
AWG |
16 |
|
Rated current |
12A |
|
Rated voltage |
630V |
|
Rated impulse voltage |
6kV |
|
Temperature Range (working and storage) |
-40°C~105°C |
|
Insulation resistance |
>100MΩ |
|
Contact resistance |
≦10mΩ |
|
Mating cycles |
100 |
|
Locking type |
Screw Locking |
|
Degree of protection acc. to IEC 60529 |
IP67 |
|
Tightening torque |
5~8 kgf.cm |
|
Halogen free |
Optional |
|
Flame retardant |
UL94V-0 |
|
UV-resistant |
Yes |
|
Material (insert) |
Thermoplastic |
|
Material (contacts) |
Copper Alloy |
|
Surface (contacts) |
Gold plated |
|
RoHS |
Compliant |
